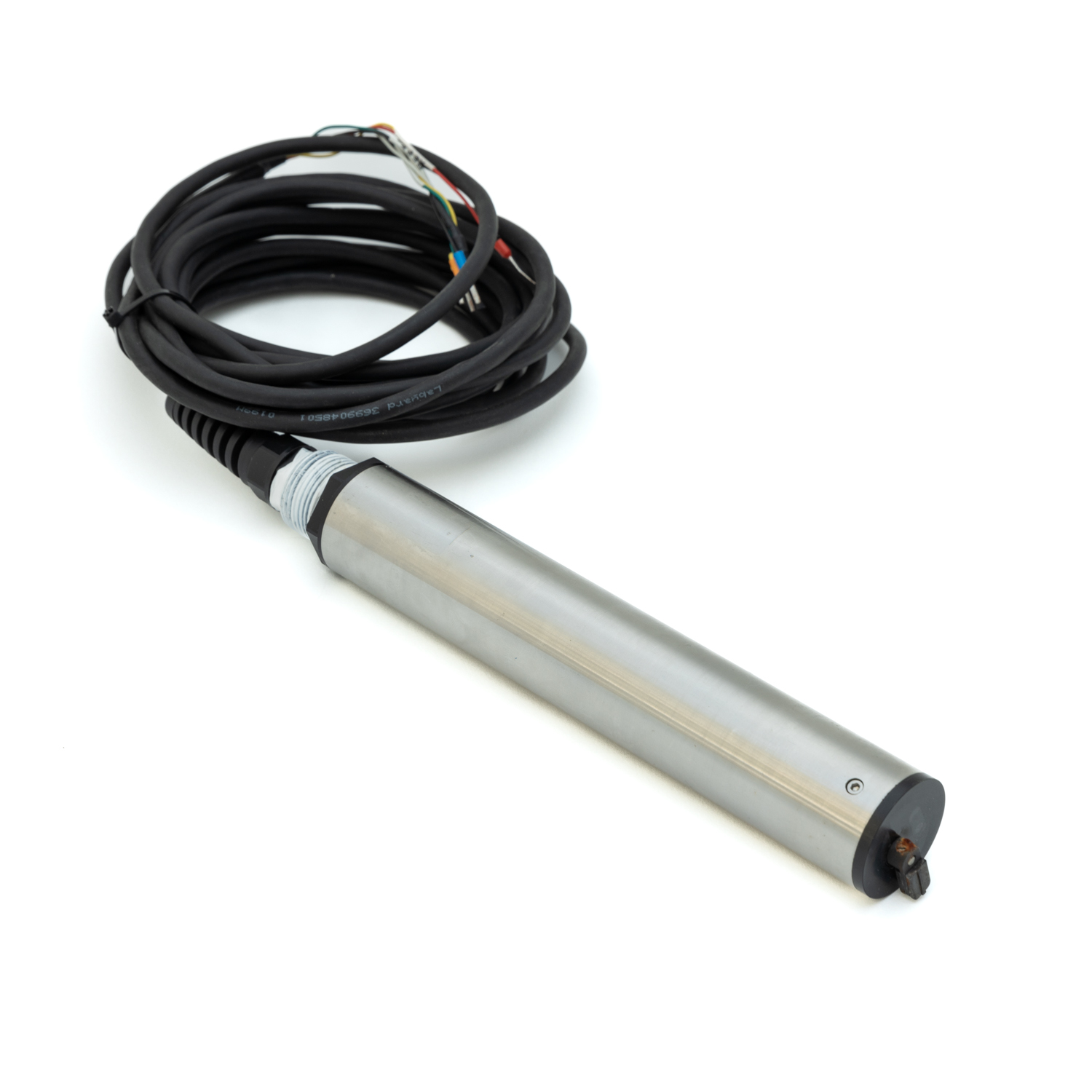

COD Analyzer

Based on the Lambert Beer absorption law, high-brightness UV LEDs of specific wavelengths are used to irradiate the organic substances in the water sample. The intensity signal after absorption is related to the content of organic substances. The sensor adopts a digital and intelligent sensor design concept, which can automatically compensate for the influence of light source fluctuations and device aging on the measurement values. It directly outputs standardized digital signals, and can achieve networking and system integration without a controller.

Model: HG COD S100

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantages

1.Employing high-performance industrial online electrodes that can operate stably for a long time

2.RS485 signal output, with strong anti-interference capability and longer transmission distance

3.Built-in temperature sensor for real-time temperature compensation

4.Integrated sealing design, with good sealing performance and resistance to static interference

5.Open communication protocol, enabling integration and networking with other devices

6.Simple operation, supporting online software upgrade

7.Electrodes can be replaced, resulting in lower long-term usage costs

Product Parameters

Detection method	ltraviolet absorption method (254nm + 546nm)
Range	(0 - 200, 500, 1000) mg/L
Temperature	(0 - 60)℃
Accuracy	≤ ±5%
Repeatability	≤ 2%
Response time	≤ 15s
Protection level	IP68
Power supply / power consumption	(12 - 28) VDC / 0.5W
Material	Stainless steel S316L

Scope of Application

It is widely applied in industries such as surface water, drinking water, municipal sewage, tap water, aquaculture, industrial wastewater, sewage treatment, cooling water circulation, process monitoring, etc.
