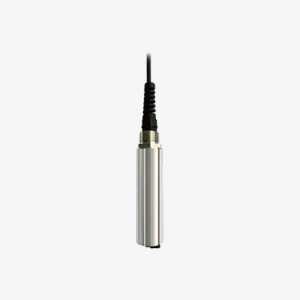

Water-based Oil Analyzer

Using high-brightness UV LEDs of specific wavelengths to excite the polycyclic aromatic hydrocarbon oil substances in the water sample, the polycyclic aromatic hydrocarbons are excited to emit fluorescence. The intensity of this fluorescence signal is related to its content value. The analyzer adopts a digital and intelligent analysis instrument design concept, which can automatically compensate for the influence of light source intensity fluctuations, device aging, and temperature changes on the measurement values, and directly outputs standardized digital signals. Without a controller, it can achieve networking and system integration.

Model: HG OY S100

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantages

1.Employing high-performance industrial online electrodes that can operate stably for a long time

2.RS485 signal output, with strong anti-interference capability and longer transmission distance

3.Built-in temperature sensor for real-time temperature compensation

4.Integrated sealing design, with good sealing performance and resistance to static interference

5.Open communication protocol, enabling integration and networking with other devices

6.Simple operation, supporting online software upgrade

7.Electrodes can be replaced, resulting in lower long-term usage costs

Product Parameters

Detection method	Fluorescence method
Range	(0 - 50) mg/L (customizable)
Temperature	(0 - 60) ℃
Accuracy	≤ ±3%
Repeatability	≤ 2%
Response time	≤ 10s
Protection level	IP68
Power supply / power consumption	(12 - 28)VDC / 0.5W
Material	Stainless steel S316L

Scope of Application

It is widely applied in industries such as surface water, drinking water, municipal sewage, tap water, aquaculture, industrial wastewater, sewage treatment, cooling water circulation, process monitoring, etc.
